Smart Antennas / GNSS Receivers

A solution for each precision need

A range of receivers compatible with FARMNAVIGATOR displays
as well as with most agriculture terminals.

Turtle Smart GNSS receiver

  • Entry level, cost-effective option
  • Single L1 frequency GNSS receiver
  • Differential corrections
  • +/- 30 cm pass-to-pass accuracy





Ideal for: Mapping, Fertilizing, Spraying, Manuring, Weeding, Harrowing.

> Product sheet
> Installation Manual



Turtle Pro GNSS Receiver

  • Cost-effective Terrain Compensation
  • Single L1 frequency GNSS receiver
  • Differential corrections
  • +/- 15 cm pass-to-pass accuracy




Ideal for: basic precision activities: Mapping, Fertilizing, Spraying, Manuring, Weeding, Harrowing and cereal seeding.


> Product sheet
> Installation Manual



Turtle RTK GNSS receiver

  • Cost-effective RTK solution
  • Multifrequency GNSS receiver
  • Terrain compensation
  • Connectivity and NTRIP RTK corrections through G7 Plus
  • +/- 2 cm pass-to-pass accuracy


Ideal for: Auto-steering applications: Seeding, Plowing, Strip-till, Planting, Weeding.

> Product sheet
> Installation manual
> NTRIP configuration manual

divider

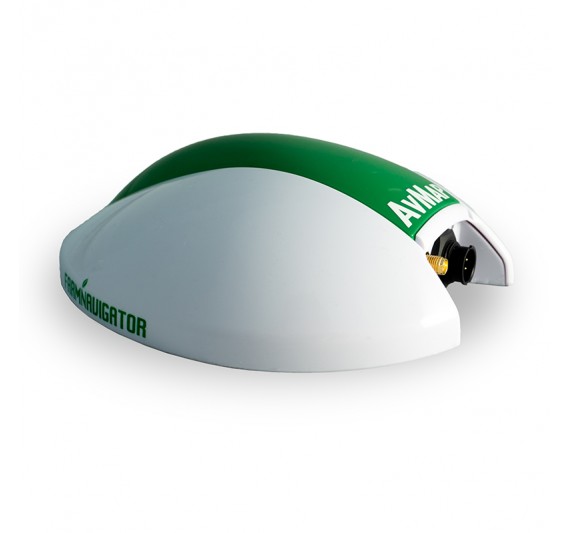

All in One RTK preview





  • Multifrequency GNSS receiver
  • Terrain compensation
  • Embedded 4G modem
  • Built-in IMU and Autosteering controller
  • NTRIP client for RTK service
  • 1 year of connectivity and telematic services on myfarmnavigator.com
  • +/- 2 cm pass-to-pass accuracy

Ideal for: Auto-Steering, Seeding, Plowing, Strip-till, Planting


Find out more

All In One TStar preview





  • Multifrequency GNSS receiver
  • Terrain compensation
  • Embedded 4G modem
  • Built-in IMU and Autosteering controller
  • NTRIP client for RTK service
  • 1 year of connectivity and telematic services on myfarmnavigator.com
  • TerraStar L correction service ready
  • Upgrade to TerraStar C-PRO correction service
  • Up to +/- 2 cm pass-to-pass accuracy

Ideal for: Auto-Steering, Seeding, Plowing, Strip-till, Planting



coming soon !

divider

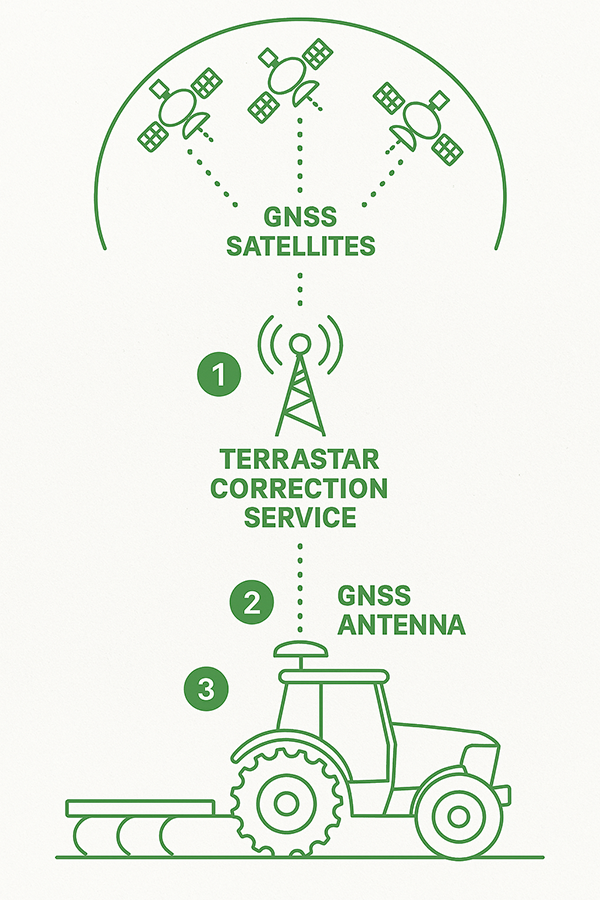

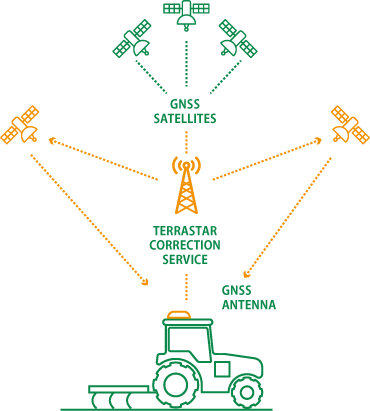

FARMNAVIGATOR now offering TerraStar services

Get advanced corrections for your receiver


Superior GNSS reference stations, redundant system architecture and continuous quality monitoring contribute to an exceptional service that is available anytime, anywhere. TerraStar Correction Services transmit correction data in real-time, with minimal latency, directly to receivers via satellite link to provide a robust solution, no matter where you are in the world.

Correction service available for :

  • FARMNAVIGATOR All in One TStar (Terrastar L ready)

  • Any third-party Novatel GNSS receiver


More info on Terrastar

In order to get the correction service on your receiver you need: service unlock code + service subscription.

 UNLOCK CODES

SUBSCRIPTIONS

Terrastar L
Included

1 YEAR Terrastar L - subscription
code: UXLGRKL1AM

Terrastar C-PRO  - unlock code
code: UXLGRKLCAM
From Terrastar L

1 YEAR Terrastar C-PRO - subscription
code: UXLGRKC1AM

RTK - unlock code
code: UXLGRKLRAM
From Terrastar L

1 YEAR of Connectivity included
with MyFarmnavigator

RTK  - unlock code
code: UXLGRKCRAM
From Terrastar C-PRO

 1 YEAR of Connectivity included
with MyFarmnavigator

 Order now

Pre-configured for G7 Farmnavigator

No setting is needed


All the Farmnavigator GNSS antenna are pre-configured for use with Farmnavigator displays.
The baude rate and all the right parameters for the GNSS antenna are pre-set.

Just connect the power cable to the Farmnavigator G7'  serial port and you are ready to use it!


Universal GNSS receivers

Compatible with any display


FARMNAVIGATOR GNSS receivers are compatible with any third party display using serial communication and NMEA0183 messaging.
The default setting is at 115200 bps which is the most commonly Baud rate used by agriculture terminals.

How to Choose the best GPS receiver for your job



What do you need it for? What is the precision required by your job?


Do you need it for basic precision operations such as mapping your fields, spraying, fertilizing, or do you really need auto-steering  for more precise applications? We offer different options for different needs and budgets.



Comparation Table


Model
Turtle Smart
Turtle Pro2
Turtle RTK
All in One RTK
All in One TStar
GPS

●

●

●

 ● ●
Glonass

●

●

●

●

 ●
Galileo

●

●

●

●

 ●
Beidou

●
●
If Glonass is disabled

●

●

 ●
SBAS

●

●

●

●

 ●
Multi-frequency band

●

●

●

●

 ●
Update rate up to
4 - 10Hz
4 - 10Hz
10Hz
10Hz
10Hz
RTK

●

●

●

 ● ●
Terrastar L correction service
●

 ● ● ● ●
Pass-to-pass accuracy
+/- 30cm
+/- 15cm
+/- 2cm
+/- 2cm
+/- 2cm
Terrain compensation
 ● ● ● ● ●
Inertial platform and controller for autosteering
 ● ● ● ● ●
Cellular modem
 ● ●
●
WiFi connection through G7 Plus Farmnavigator
 ● ●
NTRIP client
●
 ●
●
Through G7 Plus Farmnavigator
 ● ●
1 Year of internet service included
 ● ● ● ● ●
Compatibility with G7 series
G7 Ezy
 ●
●
●
 ●
Suggested use


Spraying
 ● ● ● ● ●
Spreading
 ● ● ● ● ●
Weeding
 ● ● ● ● ●
Manuring
 ● ● ● ● ●
Harrowing
 ● ● ● ● ●
Seeding
 ●
●
 ● ● ●
Plowing
●
 ● ● ● ●
Strip-till
 ● ● ● ● ●
Planting
 ● ● ● ● ●
