All in One Tstar

SMART ANTENNAS  |    SMART FARMING

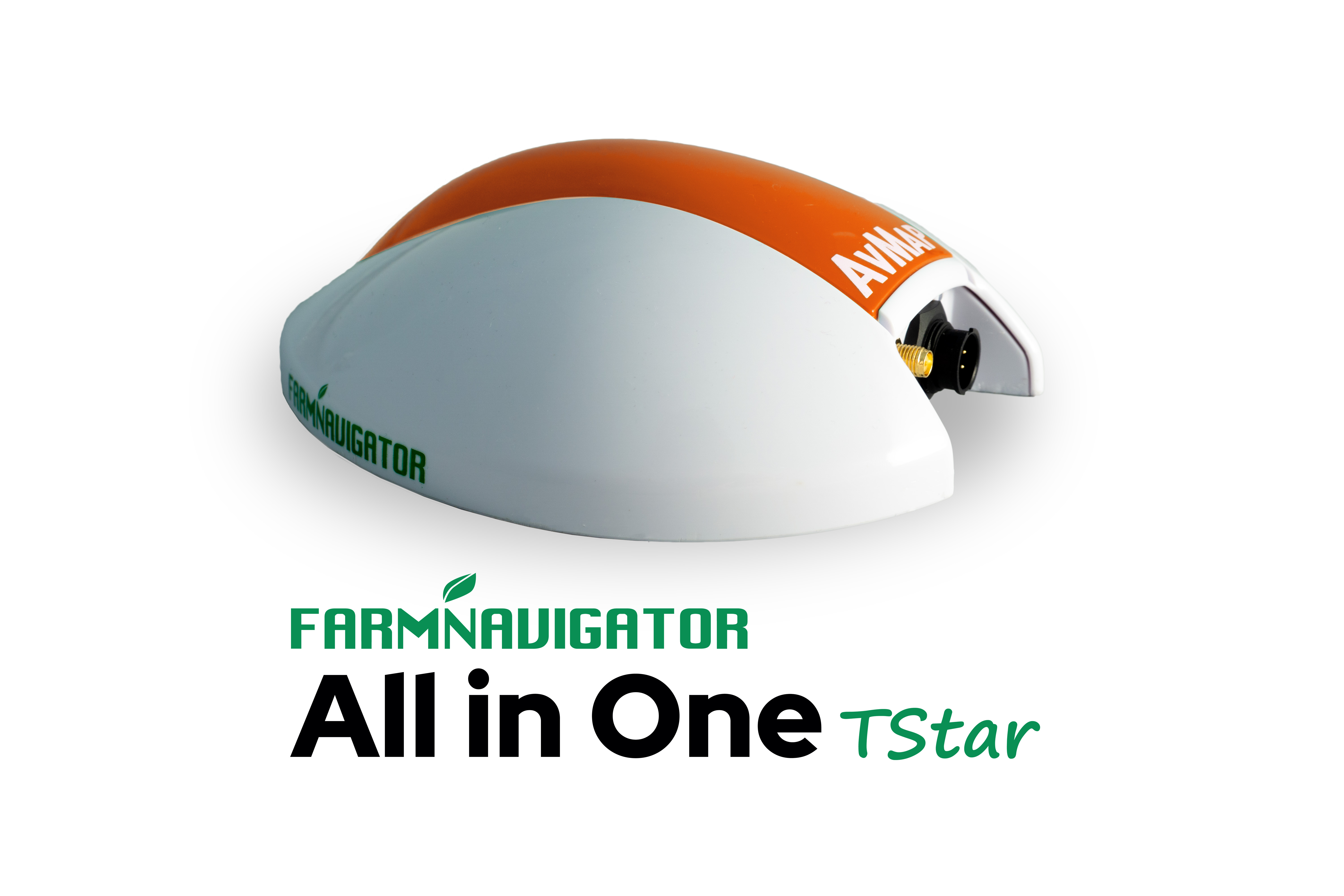

All in One TStar

Sub-Decimeter Accuracy Anywhere
Ideal for areas with limited  mobile coverage


FARMNAVIGATOR All in One TStar provides reliable performance even in remote fields, with high accuracy even without a cellular network thanks to L-Band TerraStar global corrections received directly by satellites.


divider

Accuracy


Centrimeter-level Accuracy

This High-precision multi-frequency GNSS receiver receives L-Band corrections to provide precise positioning even in area with no cellular network. Precision of +/- 2 cm.


Connectivity & IoT


Connectivity & IoT

All in One TStar includes 4G modem and connectivity to get Localization and Telemetry services on MyFarmnavigator.com cloud portal!




Terrain Side Compensation


Terrain compensation

The embedded motion sensors (a fully featured inertial platform) provide  precise terrain compensation, as well as accurate dynamic vehicle information for auto-steering.




Easy to integrate


Easy to integrate

Universal compatibility: compatible with agriculture terminals using serial communication and NMEA0183 messaging. You can set it up with any device, thanks to the configuration software.

Ideal for

High precision tasks


High-performance semi-autonomous or autonomous applications that need centimeter level accuracy, even in highly variable terrain:


• Auto-Steering

 • Seeding

• Plowing

• Strip-till

• Planting

TerraStar corrections service

Get advanced corrections for your receiver directly form L-BAND satellite


TerraStar Correction Services transmit correction data in real-time, with minimal latency, directly to receivers via satellite link to provide a robust solution, even without cellular network, no matter where you are in the world.

In order to get the correction service on your receiver you need: service license unlock code + service subscription.

Order now to your trusted FARMNAVIGATOR Reseller:


UNLOCK LICENCES

SUBSCRIPTIONS

Terrastar L
Included
Corrections via L-Band Satellite - Accuracy 15 cm

1 YEAR TerraStar L | subscription
Order code: UXLGRKL1AM

TerraStar C-PRO | unlock license
Order code: UXLGRKLCAM
From TerraStar L
Corrections via L-Band Satellite - Accuracy 2 cm

3 MONTHS TerraStar C-PRO | subscription
Order code: UXLGRKC3AM

1 YEAR TerraStar C-PRO | subscription
Order code: UXLGRKC1AM

RTK | unlock license
Order code: UXLGRKLRAM
From TerraStar L
Corrections via Internet- Accuracy 2 cm

RTK  | unlock license
Order code: UXLGRKCRAM
From TerraStar C-PRO
Corrections via Internet - Accuracy 2 cm


1 YEAR of Connectivity included
Register to myfarmnavigator.com to access the service.

Please refer to your distributor / reseller
for NTRIP client specific setup.

divider

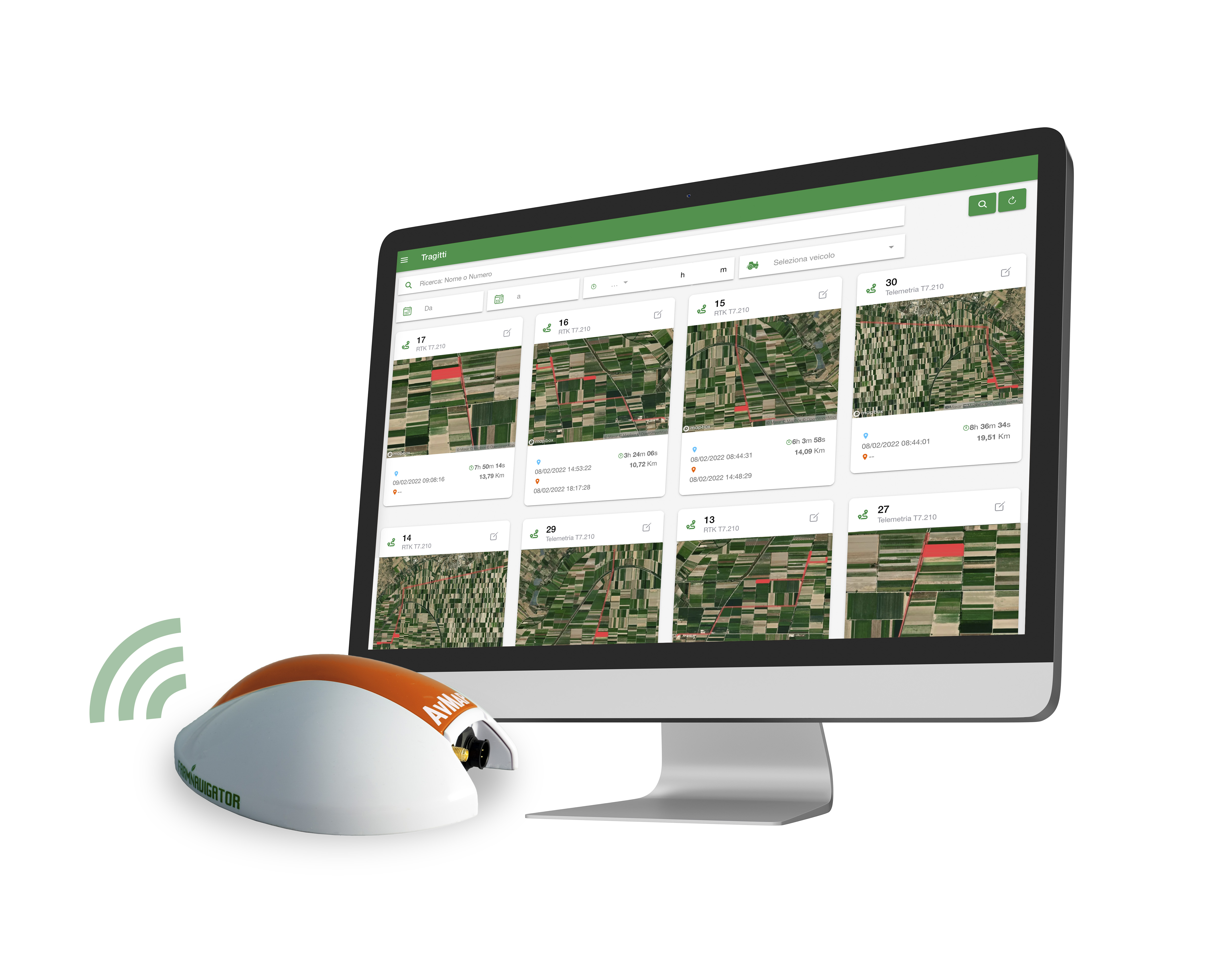

1 Year of telematic services included!

Tracking, Telemetry and motion sensors data



All in One receivers are  connected and designed for Smart Farming services.
The service is included for 1 Year, and can be extend to 3 or 5 years. Register your All in One receiver  on myfarmnavigator.com in a few simple steps, and start monitoring your vehicles on the cloud!

Technical Specifications

Allin One 4G specifications

PHYSICAL AND ELECTRICAL

Dimensions: 184 x 152 x 55 mm

Weight: 240 g without power cable

Supply voltage: 10-35 Vdc

Power consumption: 125 mA max @12V DC (~ 1.5 W)

Power cable: 4 m Conxall to DB9

Triaxial accelerometer + gyro

2x Led indicators

Built-in magnets for easy mounting

ENVIRONMENTAL

Operating Temperature: -20 °C / +60 °C

Storage Temperature: -30 °C / +80 °C

Waterproof: IP67



Specifications 2

COMMUNICATION

GNSS Receiver: GPS + GLONASS + GALILEO + BEIDOU + SBAS

GNSS rate: configurable (up to 10Hz)

GNSS frequency band: L1, L2, L5, L-Band

RS232 baud rate: configurable (115200 default)

RS232 protocol: NMEA0183 (GGA, GLL, RMC, GSA, GSV, VTG, ZDA, GST default)

PERFORMANCE

RTK precision +/-0.02 m

CONNECTIVITY

Embedded 4G cellular modem and SIM on chip

Automatic FOTA Updates

Automatic connection to IoT server

Embedded NTRIP Client



divider

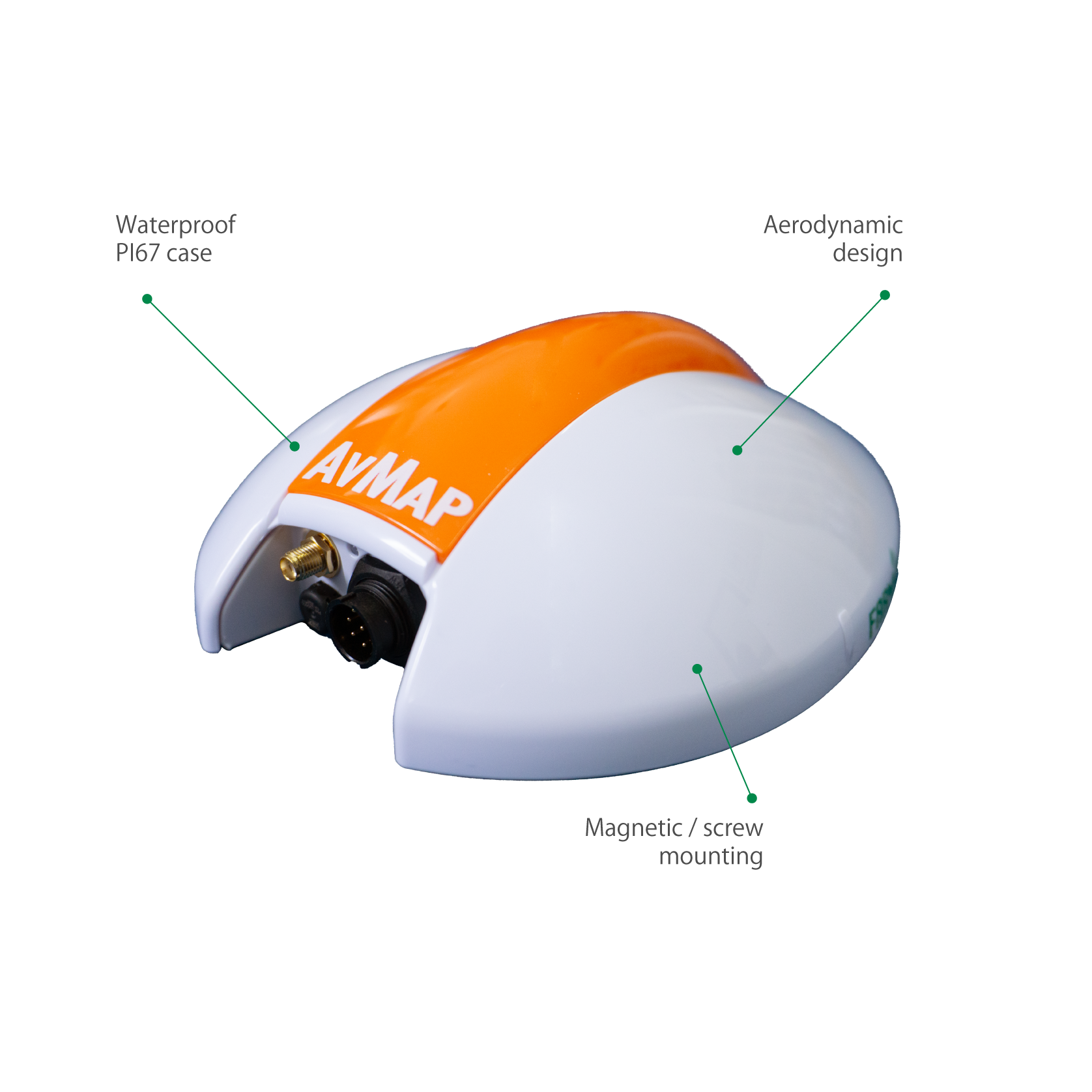

New Design

New rugged housing for longtime outdoor use



WATERPROOF

The IP67 rating housing ensures good waterproof, dustproof, high & low temperature protection, and anti-vibration protection.

AERODYNAMIC DESIGN

The aerodynamic design allows the antenna to resist impacts with branches without moving and without being damaged.


FLEXIBLE INSTALLATION OPTIONS

Both magnetic supporting and screw mounting are supported.

Support

Register

Register

Register your connected product on MyFarmnavigator and start using Smart Farming services!


Support

Support

Request Assistance


user manual

User Manual

  All in One TStar  Installation manual



product sheet

Product sheet

 GNSS Receivers
  GNSS Receivers



Comparation Table


Model
Turtle Smart
Turtle Pro3
All in One RTK
All in One TStar
GPS

●

●

 ● ●
Glonass

●

●

●

 ●
Galileo

●

●

●

 ●
Beidou

●
●
If Glonass is disabled

●

 ●
SBAS

●

●

●

 ●
Multi-frequency band

●

L1,L5

L1,L2,L5, E6

 L1,L2,L5,L-Band
Update rate up to
4 Hz
10 Hz
20 Hz
20 Hz
RTK

●

●

 ● ●
Terrastar L correction service
●
 ● ● ●
Pass-to-pass accuracy
+/- 30cm
+/- 15cm
+/- 2cm
+/- 2cm
Terrain compensation
 ● ● ● ●
Inertial platform and controller for autosteering
 ● ● ● ●
Cellular modem
 ● ● ● ●
NTRIP client
●
 ● ● ●
1 Year of internet service included
 ● ● ● ●
CAN support
 ● ● ● ●
Compatibility with G7 series
G7 Ezy
 ●
●
 ●
Suggested use


Spraying
 ● ● ● ●
Spreading
 ● ● ● ●
Weeding
 ● ● ● ●
Manuring
 ● ● ● ●
Harrowing
 ● ● ● ●
Seeding
 ●
●
 ● ●
Plowing
●
 ● ● ●
Strip-till
 ● ● ● ●
Planting
 ● ● ● ●
